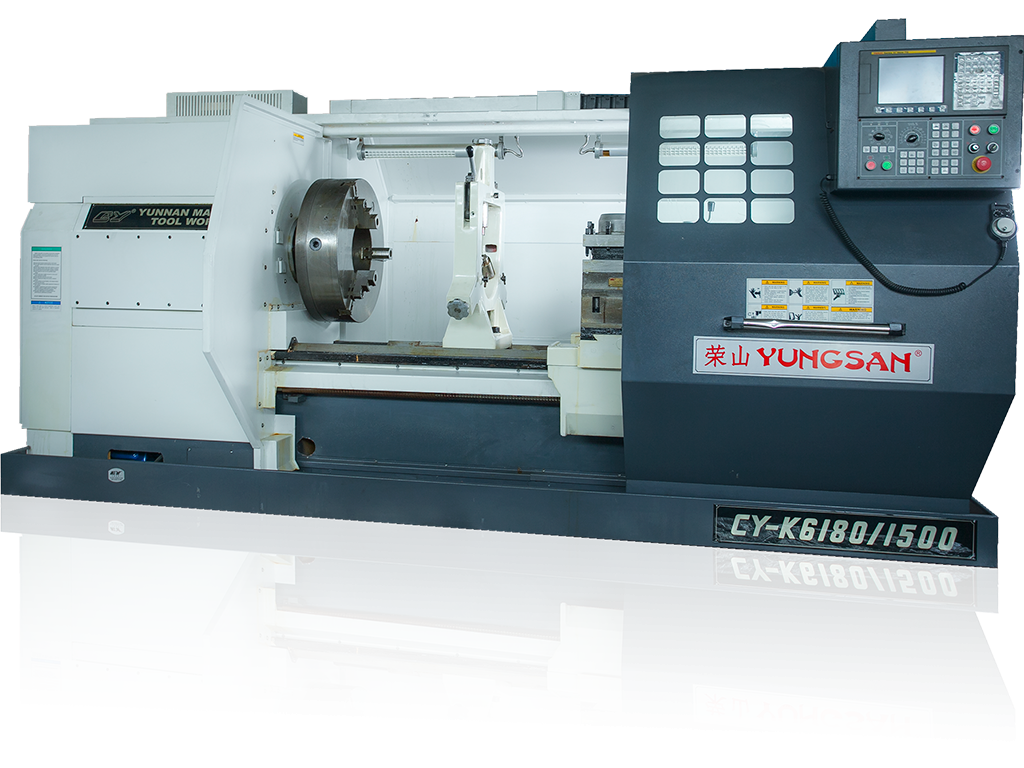

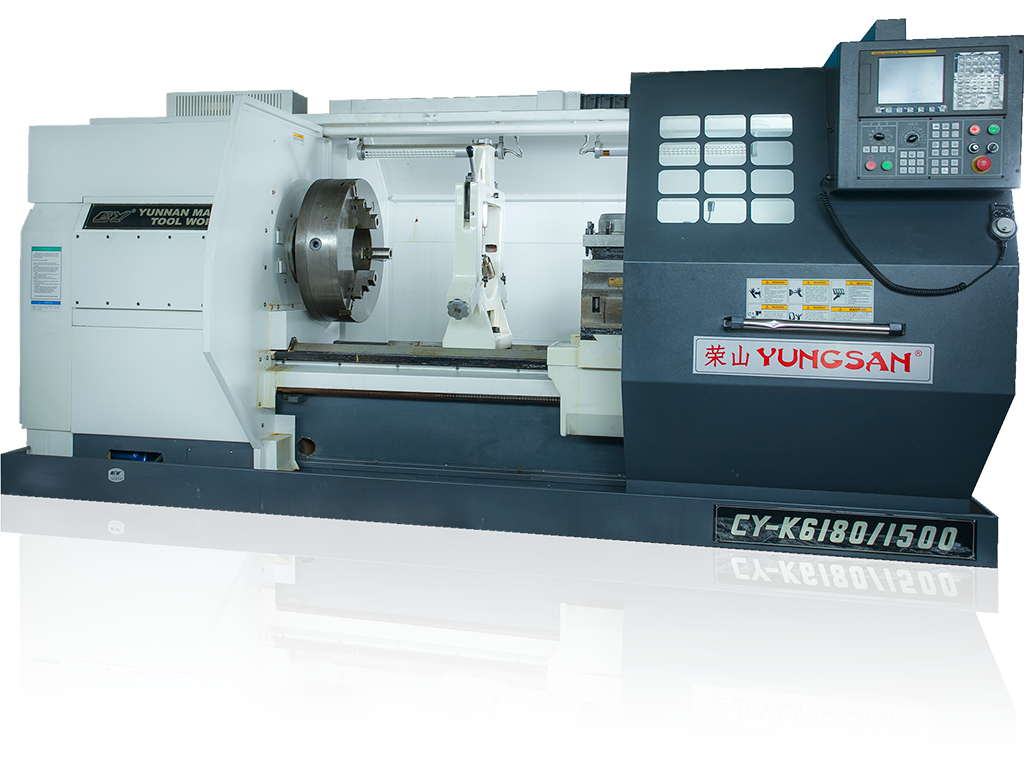

Flat-Bed CNC Lathe

Features

The specially designed Independent Spindle structure ensures the maximum heat dissipation and brings down the heat distortion.
Single piece body (legs and bed ways) enhance the cutting rigidity.
Automatic 3-step gear box with inverter is standard spindle drive, while servo motor drive as optional.

Specifications		Unit	CY-K6163	CY-K6180
Distance between centers		mm	750, 1500, 3000
Swing over bed		mm	630	800
Swing over cross slide		mm	350	520
Width of bed		mm	600
Spindle nose & bore			A₂-11 ø104mm	D-11 ø130mm
Spindle speed		rpm	22-108, 60-300, 240-1200
Max. Travel X/Z axis		mm	420 / 1350, 2850
Rapid feed speed X/Z axis		m/min	4 / 8
Positioning accuracy X/Z axis		mm	0.03 / 0.04
Repeatability X/Z axis		mm	0.012 / 0.02, 0.025
Tailstock quill diameter		mm	100
Tailstock quill max travel		mm	250
Tailstock quill taper			MT5
Max. turning dia. For disc (V4)		mm	630	800
Max. turning dia. For disc (H6)		mm	590	760
Max. Load		kg	1500 (1500 mm), 2500 (3000 mm)
Main Motor		kW	11	15
Gross / Net weight	750 mm	kg	5000 / 4550	5200 / 4750
	1500 mm		7000 / 5500	7500 / 6000
	3000 mm		8500 / 7000	9000 / 7500
Package dimension	750 mm	mm	3080 x 2050 x 1895
	1500 mm		3820 x 2050 x 1895
	3000 mm		5330 x 2050 x 1895

Electronics hand-wheels with Teach-In function (only available on Fanuc, Fagor & Siemens)
Servo motor drive
ø250 / ø315 hydraulic through / solid 3-jaw chuck
Horizontal 6-position electronic turret
Hydraulic tailstock
Air conditioner
Steady rest / Follow rest

The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation.
