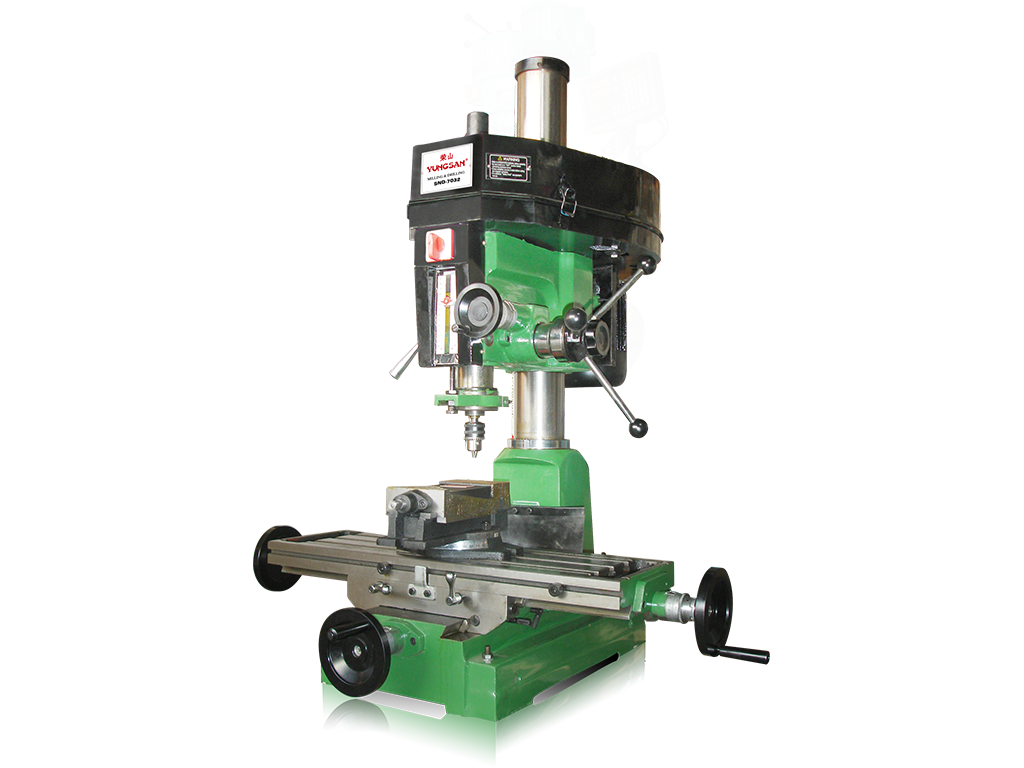

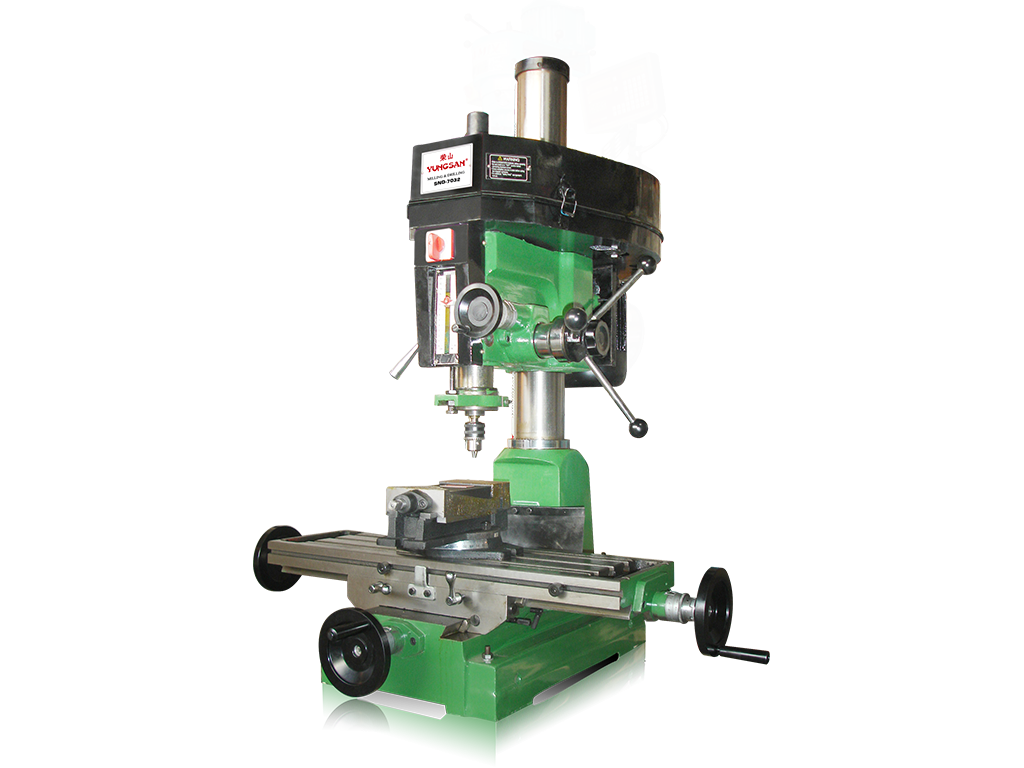

Model SND-7032 Milling & Drilling Machine is designed for cutting operation or milling and drilling. If being fitted with special accessories, it can perform boring and milling operation.
It is special design with artistically shape, compact in structure, convenient for operation and maintenance. It is good functions and workmanship. For its multi-purpose feature, it is suitable for use maintenance depots tool rooms, handicraft workshop, agriculture service station or on mobile service vans.
| Specifications | Unit | SND-7032 | |
|---|---|---|---|
| Max. Drilling Capacity | mm | 32 | |
| Max. Diameter of End Milling Cutter | mm | 20 | |
| Max. Diameter of Face Milling Cutter | mm | 76 | |
| Spindle Speed 12 Steps | rpm | 80-2080 | |
| Taper in Spindle Bore | # | M.T. No. 3 | |
| Max. Spindle Travel | m | 130 | |
| Max. Travel of Spindle Head | mm | 680 | |
| The Length between Spindle Axis and Column Face | mm | 193.5 | |
| Work Table Travel | Right and Left | mm | 530 |
| Forward & backward | mm | 195 | |
| Work Table Dimensions | mm | 800 x 240 | |
| Motor | KW | 1.5 | |
| Net Weight | kg | 300 | |
| Gross Weight | kg | 370 | |
| Dimension of Packing (LxHxW) | mm | 1080x1010x1400 | |
The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation.
