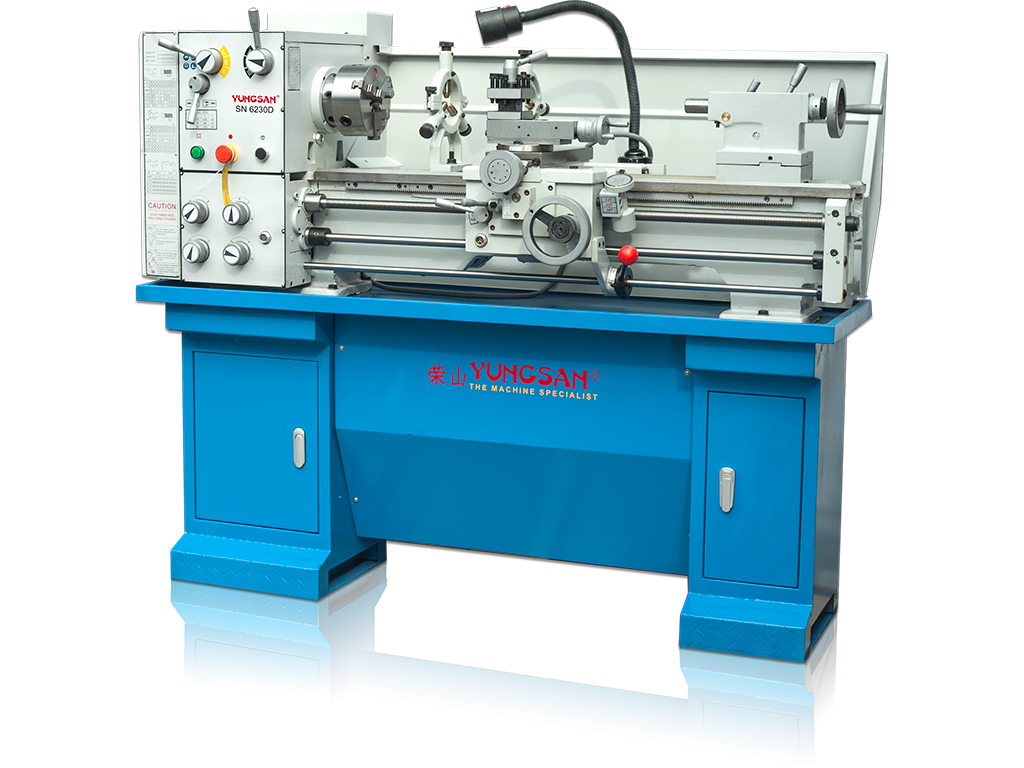

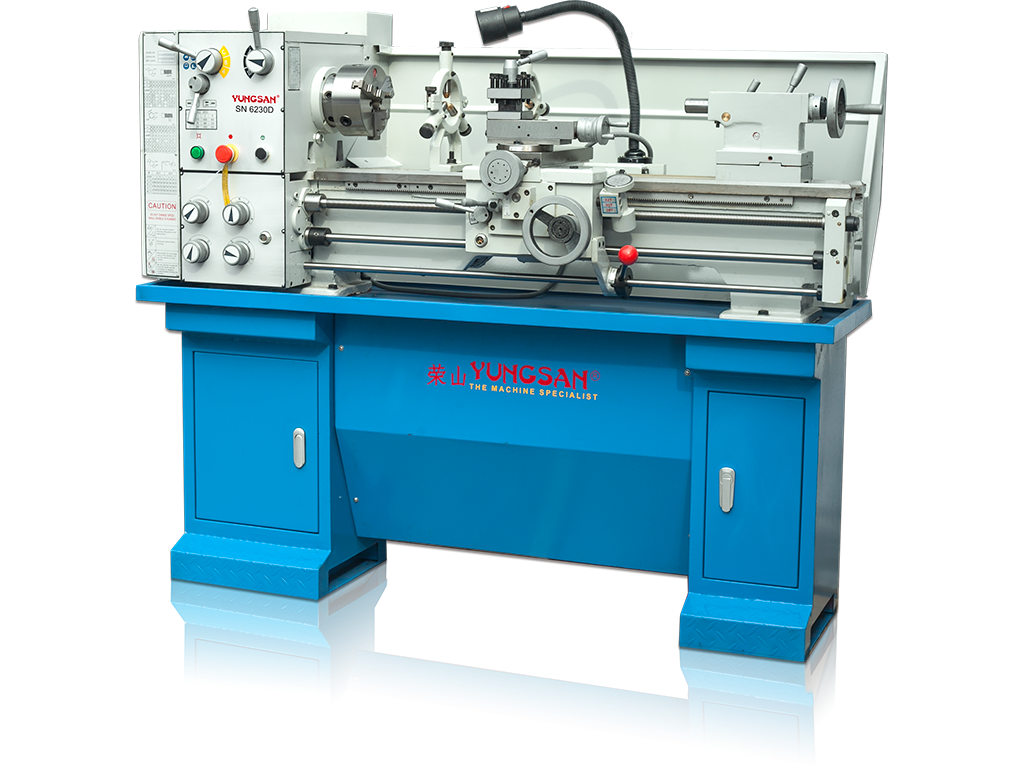

> Precision Gap-Bed Lathe
SND-6030_3676

Precision Gap-Bed Lathe

馬鞍車床

  • SN-6230D

Page: 40

Enquiry now

Applications

  • The machine which is a universal style and milti-purpose use engine lathe, can perform various kinds of working such as internal and external cylindrical surface, tapered surface, facing and grooving, threads of metric, withworth, module and diametral pitch system, as well as drilling, reaming, and thread tapping processing and etc. In the gap-bed lathe can machine large diameter disk of irregular shape workpieces.
  • The machine has the performance of novel design, reliable quality and easy to operate, thus it is an ideal equipment for cutting processing.
Specifications Unit SN-6230D
Max. Swing over bed mm 300
Max. swing over cross slide mm 178
Max. swing over gap mm 430
Max. length of work piece mm 910
Hole through Spindle mm 38
Range of spindle speeds (9 steps) rpm 50-1500
Metric threads can be cut (26 kinds) mm 0.4-7
Inch threads can be cut (34 kinds) mm 4-56
Pitches of three feed lead screws TPI 8 TPI
Longitudinal feed per revolution of spindle (32 kinds) mm/rev 0.052-1.392
Cross feed per revolution of spindle (32 kinds) mm/rev 0.14
Motor Hp 1.5Hp, 50Hz, 380V (3 phase)
Overall dimensions (LxWxH) mm 1600 x 730 x 1160
Net weight Kg 450

Standard Accessories

  • Center Sleeve & Center
  • 3 Jaw Chuck ø 160 mm
  • 4 Jaw Chuck ø 200 mm
  • Face Plate ø 300 mm
  • Steady Rest
  • Follow Rest
  • Metric Changing Gears (8 pcs)
  • Spalsh Guard
  • Foot Stand and Cabinet
  • Lighting
  • General Tools

The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation.
