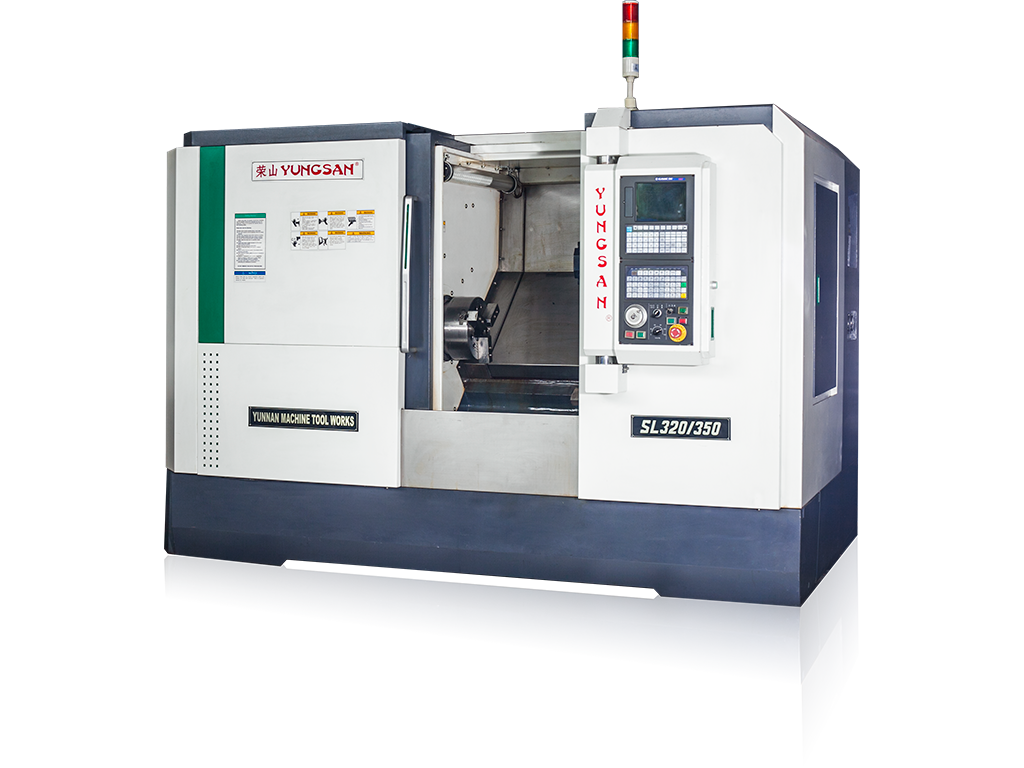

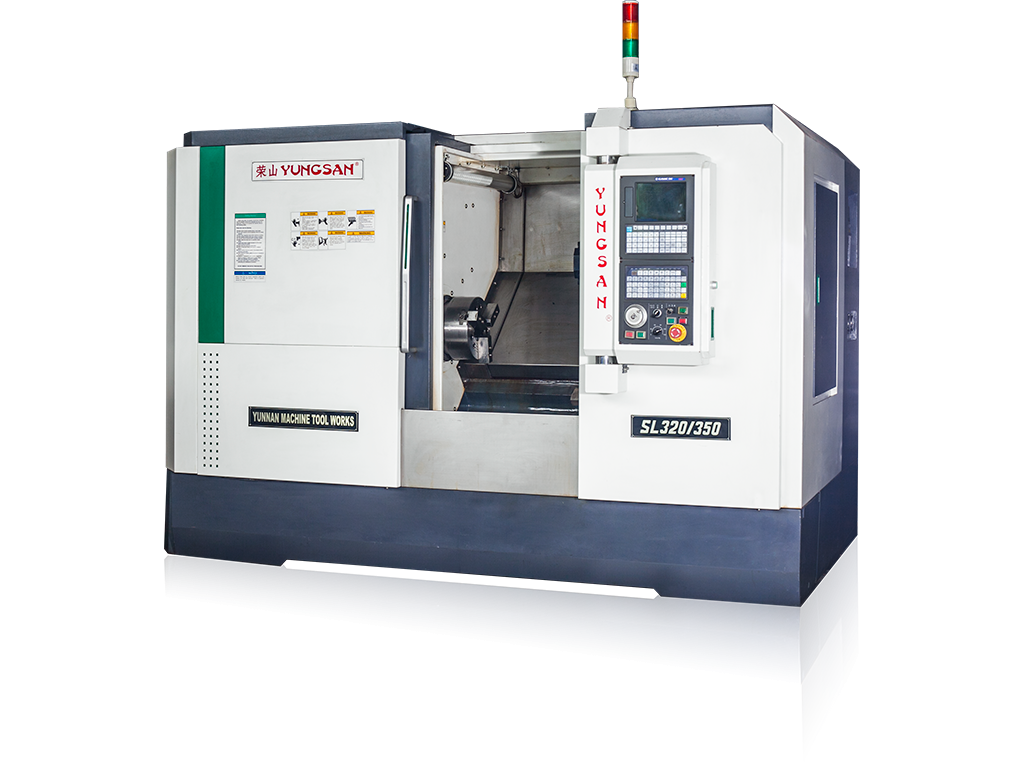

Slant Bed CNC Lathe

Application

CY-SL series CNC lathes – its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design. This series lathe, designed with high vibration strength, adopts high grade cast iron bed base, slant guideways, a high precision through–hole spindle driven by large–field AC main motor. Key parts like bearings of main spindle and feeding screw are all famous foreign products.
The lathe is designed with unique appearance, easy–operated panel, full–enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.

45 slant bed construction assures solid support of turret, high rigidity against blending and efficient chip removal, The spindle has high accuracy and high rigidity, The Guide-way is made of high quality cast-iron and induction hardened.
Independent spindle with imported brand V-belt, high precision spindle bearings and high-speed grease ensures fast and stable machine start.
Linear rolling guide way provides high feed speed, high precision, rigidity and small friction.
Taiwan hydraulic turret or foreign servo turret are optional and all high rigidity, high precision and reliable locking. Hydraulic manual locking tailstock is optional as well.

Specifications		Unit	CY-SL2535	CY-SL3235	HTC-1612
Distance between centers		mm	350	350	120
Max cutting diameter		mm	250	320	160
Swing over bed		mm	520	520	450
Swing over cross slide		mm	250	320	160
Spindle nose & bore			A₂ – 6 ø62	A₂ – 8 ø82	A₂ – 5 ø48
Spindle center diameter			1 : 20
Spindle speed		r/min	30 – 3000	25-2500	40 – 5000
Spindle max torque		Nm	105	145	64
Rapid feed speed X/Z axis		m/min	16/20		24/24
Max. travel X/Z axis		mm	200/400		350/200
Tallstock quill diameter		mm	90		–
Tailstock quill max travel		mm	110		–
Tallstock travel		mm	150		–
Tailstock quill thrust		N	6000		–
Turret transfer time: per position / 180		s	0.4/1.6		–
Main motor		kw	11	15	5.5
Chuck diameter		Inch	8	10	6
Max. overload (kg)	Disc	kg	120	200	80
Max. overload (kg)	Shaft	kg	500	600	80
Gross/Net weight (kg)		kg	4200/3650	4350/3800	3200/2500
Package dimensions		mm	2650x1850x1850		2200x2000x2170

The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation.
