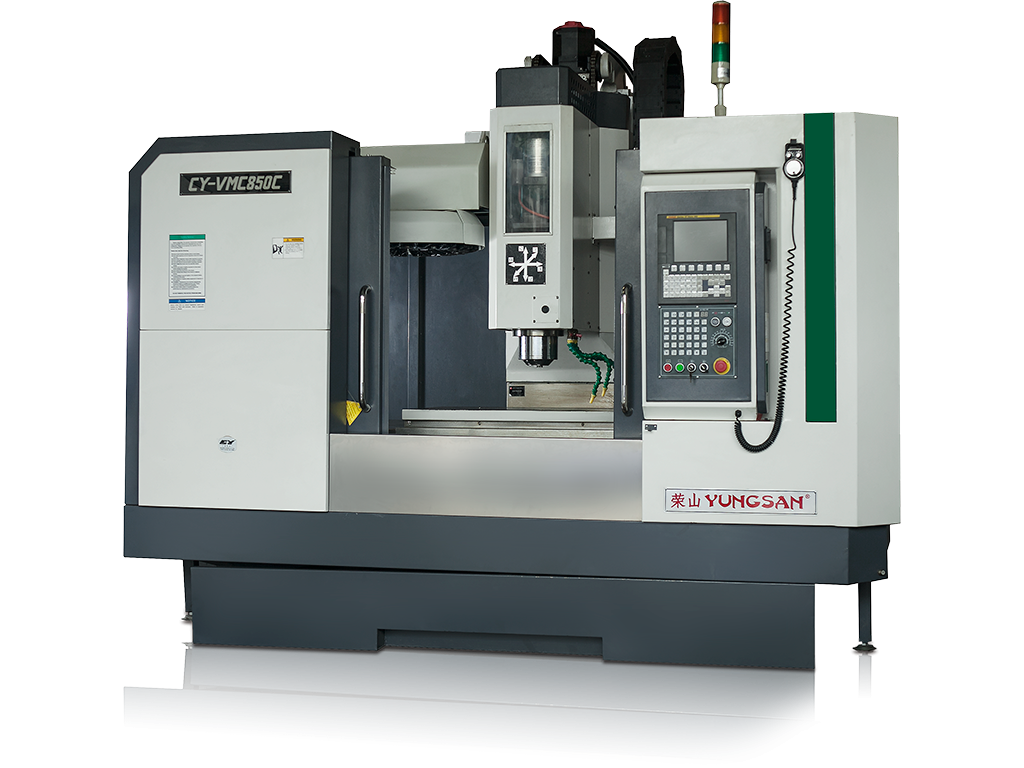

Vertical Machining Center

Application

CY–VMC series are designed with vertical bridge frame. They have wide machining range, high rigidity, high accuracy, high speed, high efficiency, high reliability and large torque as well as temperature stable increasing spindle system. All the axes and spindle are driven by servo motor and have 3 axes or 4 axes coordinate.
This series machines are designed for milling, drilling, reaming, boring, tapping and counter boring/sinking value type work pieces cams, moulds, plate or disk type and case type work pieces. They are used in automobile industry, motor cycle industry, machinery manufacturing, motor industry and instrument industry, especially those in complex shapes like 2-dimension or 3-dimension concave/convex moulds and cavities.
The machine is either suitable for multi–product small–medium patch and mass production when fitted to a production line. Use these machines can save technical equipment, shorten production preparation time, ensure product quality and improve productivity effect. All cycling manufacture program was equipped in CNC System.
Spindle hole is equipped with air-blowing device for cleaning. Adequate work piece cooling system.

Main body parts of the machine are made of high quality and low stress cast iron with resin sand foundry, which ensures precision and rigidity.
Bed–type structure, level–cross worktable and counterweight balance headstock make the working counterpoise and fast.
With stepless speed change and main transmission position feedback, it can perform high–speed and rigidity tapping.
Full–guarding (no roof), integrated mechanical design and advanced structure enables it is convenient to operate, clean and maintain.

Main Specifications		Unit	CY-VMC850C	CY-VMC1060	CY-VMC1270
Table size (L x W)		mm	1050 x 500	1300 x 600	1360 x 700
Max load of table		kg	600	800	1000
T-slot (number of slot width x pitch)			5–18 x 150	5–18 x 120	5–18 x 152.5
Stroke	X axis	mm	800	1000	1200
	Y axis	mm	500	600	700
	Z axis	mm	500	600	600
Spindle taper			BT40 / ø150		BT50 / ø155
Spindle speed		rpm	50–8000
Spindle drive motor		kW	5.5 / 7.5	11/15
Rapid feed speed X axis		m/min	20
Rapid feed speed Y axis		m/min	20
Rapid feed speed Z axis		m/min	18
Tool storage capacity (umbrella type)		piece	16	20
Tool selection			Bi-directional random
Max tool diameter with-without adjacent tool		mm	ø90–ø150		ø135–ø200
Max tool weight		kg	8		15
Position accuracy X, Y, Z axis	JIB6330	mm	±0.005/300		±0.006/300
Position accuracy X, Y, Z axis	JB/T8771.4–1998	mm	0.016/0.012/0.012		0.020/ 0.016/ 0.016
Reposition accuracy X, Y, Z axis	JIB6330	mm	±0.003
Reposition accuracy X, Y, Z axis	JB/T8771.4–1998	mm	0.010/0.008/0.008		0.012/0.008/0.008
Torque of X axis		Nm	10	14	16
Torque of Y axis		Nm	12	16	20
Torque of Z axis		Nm	12	16	20
Net/gross weight		kg	6000/7000	7500/8500	9500/10300
Voltage/frequency		V/Hz	AC 380+ 10%~-15%/50

The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation.
